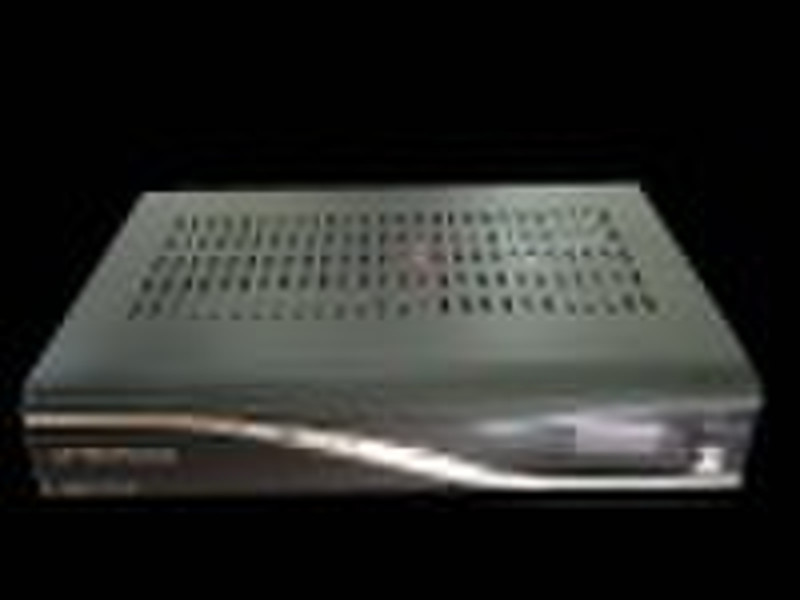

Dreambox DM800HD

Dreambox 800S (DM800S)HD PVR Satellite Receiver:Powerful receiver for digital TV and Radio programs. Main features are a 300 MHz processor the Dreambox DM800 supports the Linux TV API have a look to HighDefinition TV on your Dreambox 10/100MBit compatible Ethernet Interface DVI connector plug & play Tuner brilliant OLED display SATA for use either as internal HDD 2,5" or eSATA300 MHz MIPS Processor Linux Operating System OLED - Display MPEG-2 / H.264 Hardware decoding Tuner: DVB-S, optional: DVB-C, DVB-S2 Tuner Module, Plug&Play 1 x Smartcard-Reader V.24/RS232 Interface 10/100Mbit Ethernet Interface 1 x Scart (RGB, FBAS or S-Video) DVI 2 x USB 2.0 analog modem S/PDIF Interface for digital bit stream out (AC-3) 64 MByte Flash, 256 MByte RAM SATA for use either as internal SATA HDD 2,5ý or to use for extern eSATA unlimited channel lists for TV/Radio channel-change time < 1 second automatic service scan directly bouquet-lists EPG (electronic program guide) multiple LNB-Switching control (supports DiSEqC) OSD in many languages and skin-support Videotext Decoder extern 12V power supply DreamBox DM 800 HD PVR technical data DBS-Tuner mit DVB-S2: Frequency Range 950 .... 2150 MHz Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK) Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC DVB-S2: 10 - 31 Mbaud/s (8PSK) , 10 ý30 Mbaud/s (QPSK) DreamBox DM 800 HD PVRVideo decoder: Video Compression MPEG-2 and MPEG-1 compatible, H.246 Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device DreamBox DM 800 HD PVRAudio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz DreamBox DM 800 HD PVROutput analog: Output Level L/R 0,5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dB DreamBox DM 800 HD PVROutput digital: Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, Toslink DreamBox DM 800 HD PVRAusgang Video: Ausgangspegel FBAS 1 Vss +/- 0.3 dB an 75 Ohm DreamBox DM 800 HD PVRVideo parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard DreamBox DM 800 HD PVRTV-Scart: Output: FBAS, RGB, S-Video DreamBox DM 800 HD PVRSerielle Interface RS 232: Typ RS232 bidirectional Bitrate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware DreamBox DM 800 HD PVREthernet: 10/100 MBit compatible interface Function: Update of Firmware DreamBox DM 800 HD PVRAnaloge modem: analoge modem for Internet connection DreamBox DM 800 HD PVRSATA Interface: - for use either as internal HDD 2,5ý or eSATAor internal 2,5" HDD USB 2 x USB 2.0 Host DreamBox DM 800 HD PVRLNB power and polarisation per tuner: LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA DreamBox DM 800 HD PVRCount of active satellite position: DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION DiSEqC - Rotor Control DreamBox DM 800 HD PVRPower consumption: < 15W at 12V DreamBox DM 800 HD PVRExternal PSU Input: 110-240V AC / 50-60Hz / 0,6A Output: 12V = / 3,0A DreamBox DM 800 HD PVRPhysical specification: Ambient Temperature +15°C...+35°C Humidity < 80% Size (W x D x H): 195 mm x 140 mm x 40 mm Weight: 1.8 kg without HDD
